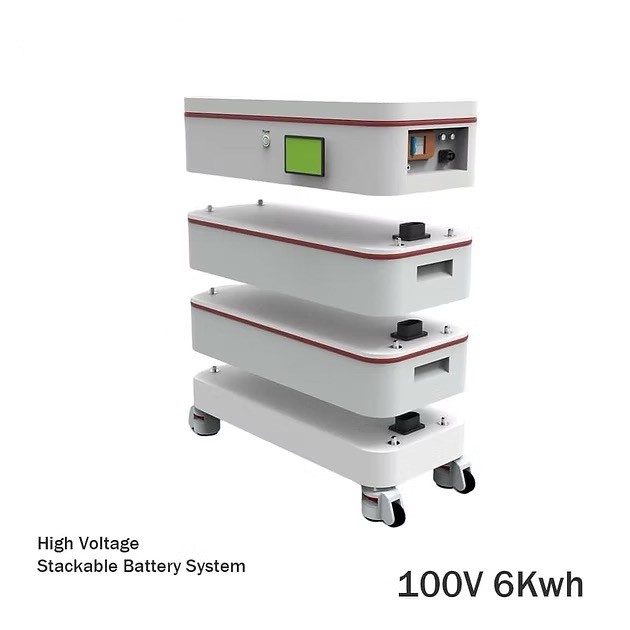

100V – 500V High Voltage Flexible Stackable Power Bank Battery 6Kwh-30Kwh
High Voltage Flexible Stackable Power Bank Battery
1.Low internal resistance
Only 1/3 of traditional batteries.
2.High efficiency
Charge/discharge efficiency>99%.
3.Excellent low temperature performance
Full working under -30℃.
4.Long battery life
10,000-20,000 deep cycles
5.Ultra-fast charging and discharging
Max charge/discharge rate 10C.
PERFORMANCE SPECIFICATIONS
Module
| Total Energy | 3Kwh/60Ah |
| Usage Energy | 2.85Kwh |
| Nominal Voltage | 51.2V |
| Charging current | 50A |
| Discharging current | 50A |
| Cycle life | >10000cycles |
| Temp range/Discharging | -30~55℃ |
| Temp range/Charging | 0~55℃ |
| Storage humidity | 5~95% |
| Communication port | CAN |
| Wifi | Yes |
Optional Capacity
| Model | Configuration | Nominal voltage | Capacity |
| SM-06 | 1 Slave module+ 1 Main module | 102.4V | 6Kwh |
| SM-09 | 2 Slave modules+ 1 Main module | 153.6V | 9Kwh |
| SM-12 | 3 Slave modules+ 1 Main module | 204.8V | 12Kwh |
| SM-15 | 4 Slave modules+ 1 Main module | 256.0V | 15Kwh |
| SM-18 | 5 Slave modules+ 1 Main module | 307.2V | 18Kwh |
| SM-21 | 6 Slave modules+ 1 Main module | 358.4V | 21Kwh |
| SM-24 | 7 Slave modules+ 1 Main module | 409.6V | 24Kwh |
| SM-27 | 8 Slave modules+ 1 Main module | 460.8V | 27Kwh |
| SM-30 | 9 Slave modules+ 1 Main module | 512.0V | 30Kwh |
