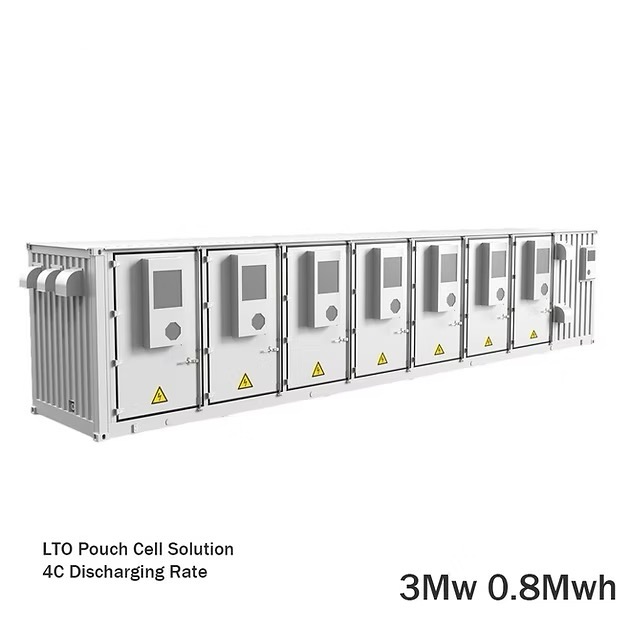

3Mw 0.8Mwh High Voltage LTO 4C Battery Energy Storage System BESS
LTO 4C Battery Energy Storage System BESS
1.Low internal resistance
Only 1/3 of traditional batteries.
2.High efficiency
Charge/discharge efficiency>99%.
3.Excellent low temperature performance
Full working under -30℃.
4.Long battery life
10,000-20,000 deep cycles
5.Ultra-fast charging and discharging
Max charge/discharge rate 10C.
Specifications
Battery Module Specifications
| Rated voltage | 82.8V |
| Charge & discharge cut-off voltage | 54-100.8V |
| Rated capacity | 56Ah |
| Nominal operating current | 120A |
| Charging current | Standard 120A, Max.240A |
| Discharging current | Standard 120A, Max.240A |
| Allowed depth of discharge | 90% |
| Rated energy | 4.63Kwh |
| Connection method | 36P4S |
| Cell quantity | 144 |
| Dimension | 520*720*140mm |
| Weight | Approx. 70kg |
Battery Rack Specifications
| Rated voltage | 745.2V |
| Rated capacity | 56Ah |
| Rated energy | 41.7Kwh |
| Operation voltage | 486-907.2V |
| Rated charge/discharge current | 200A/200A |
| Self-discharge | 2% per month |
| Operation temp | -30℃- 55℃ |
| Storage temp | 10~45℃ |
| Weight | 700Kg |
| Rack dimension | 550*760*2000mm |

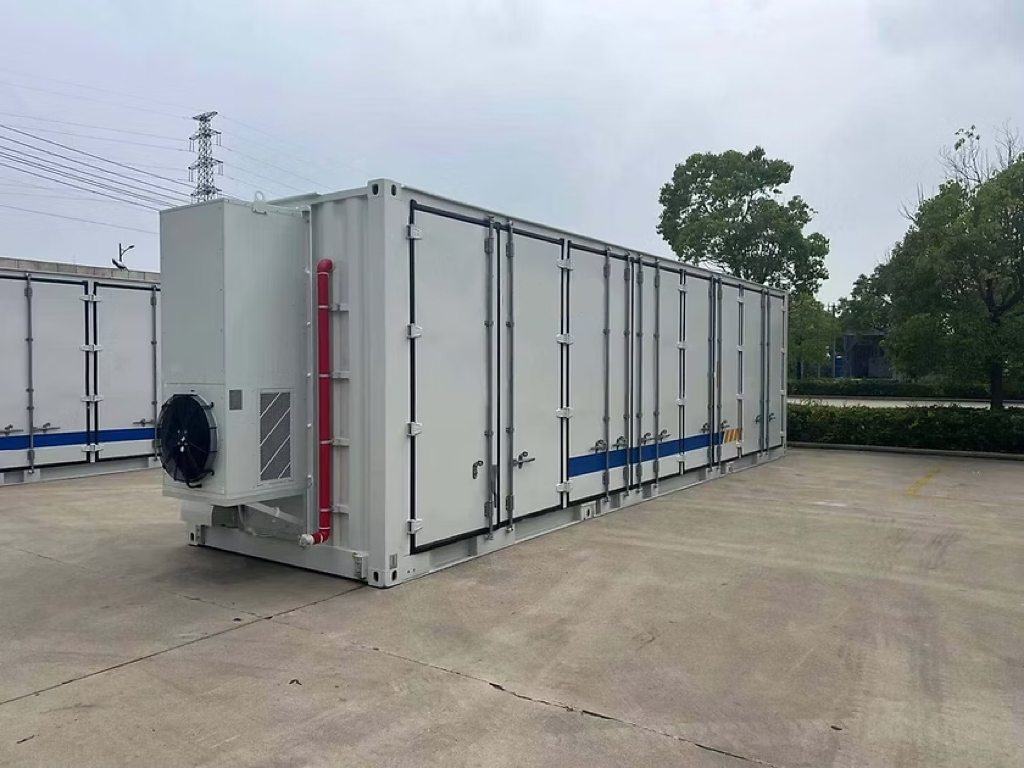

Battery Container Specifications
| Rated voltage | 745.2V |
| Rated capacity | 1120Ah |
| Rated energy | 0.8Mwh |
| Operation voltage | 486-907.2V |
| Rated charge/discharge current | 800A/800A |
| Self-discharge | 2% per month |
| Operation temp | -30℃- 55℃ |
| Storage temp | 10~45℃ |
| Weight | 14000Kg |
| Dimension | ISO 40GP Container |
