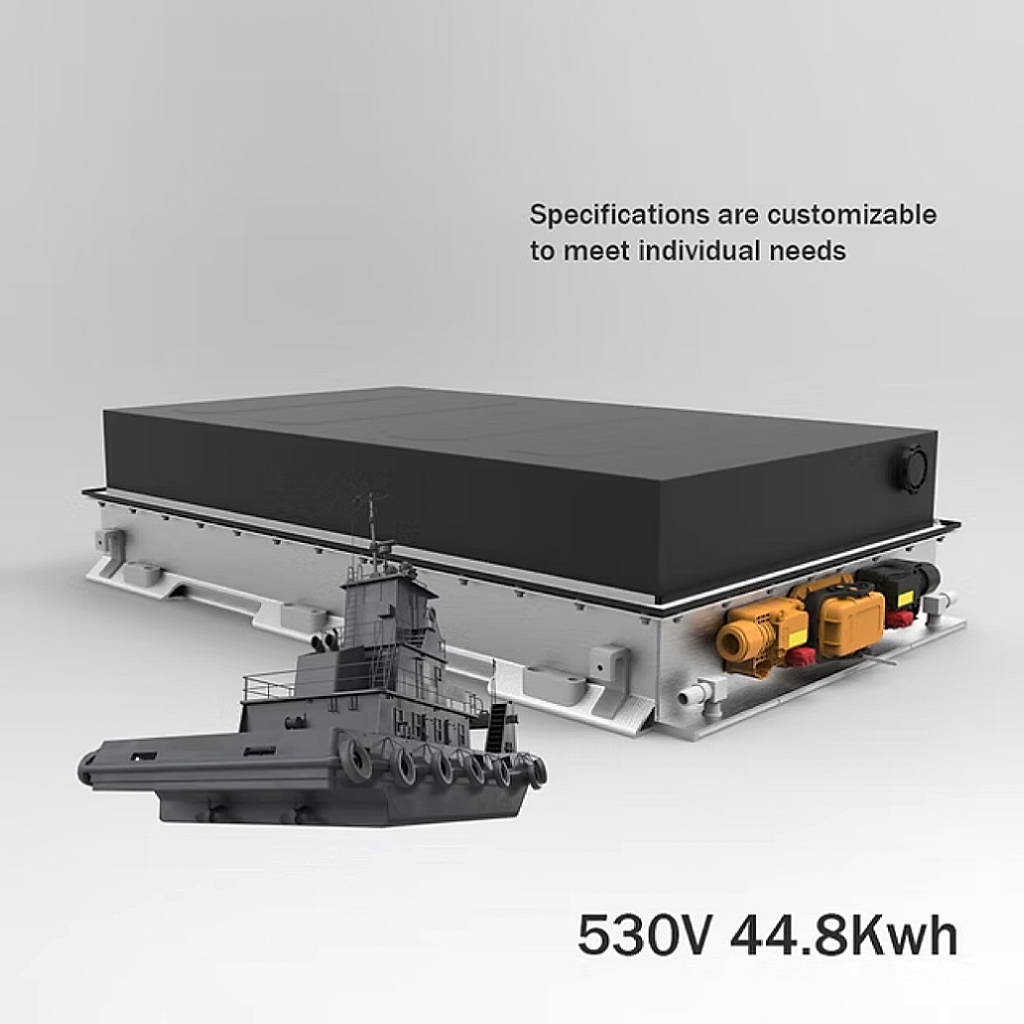

530V 44.8Kwh Electric Vessel Ships Battery System
Cells: NCM 21Ah Pouch cell
Case Number: 2 HV-B
Rated Voltage: 532.8V
Rated Capacity: 84Ah
Rated Energy: 44.8Kwh
BMS: ISO 26262 certification
Electric Vessel Ships Battery System
Description
Specifications
| Item | Specification | Remark |
| Nominal capacity | 84Ah | @25℃，±5% |
| Nominal voltage | 532.8V | |
| Charging limiting voltage | 604.8V | |
| Discharging limiting voltage | 388.8V | |
| Nominal energy | 44.8kWh | |
| Weight | 302Kg | |
| Constant charging current | 100A | cooling with air conditioner |
| Constant discharging current | 100A | |
| Peak discharging current | 120A | 10s，@50%SOC |
| Ingress protection | IP67 | |
| Working temp range | Charging: 0℃~55℃
Discharging：-20℃~55℃ |
