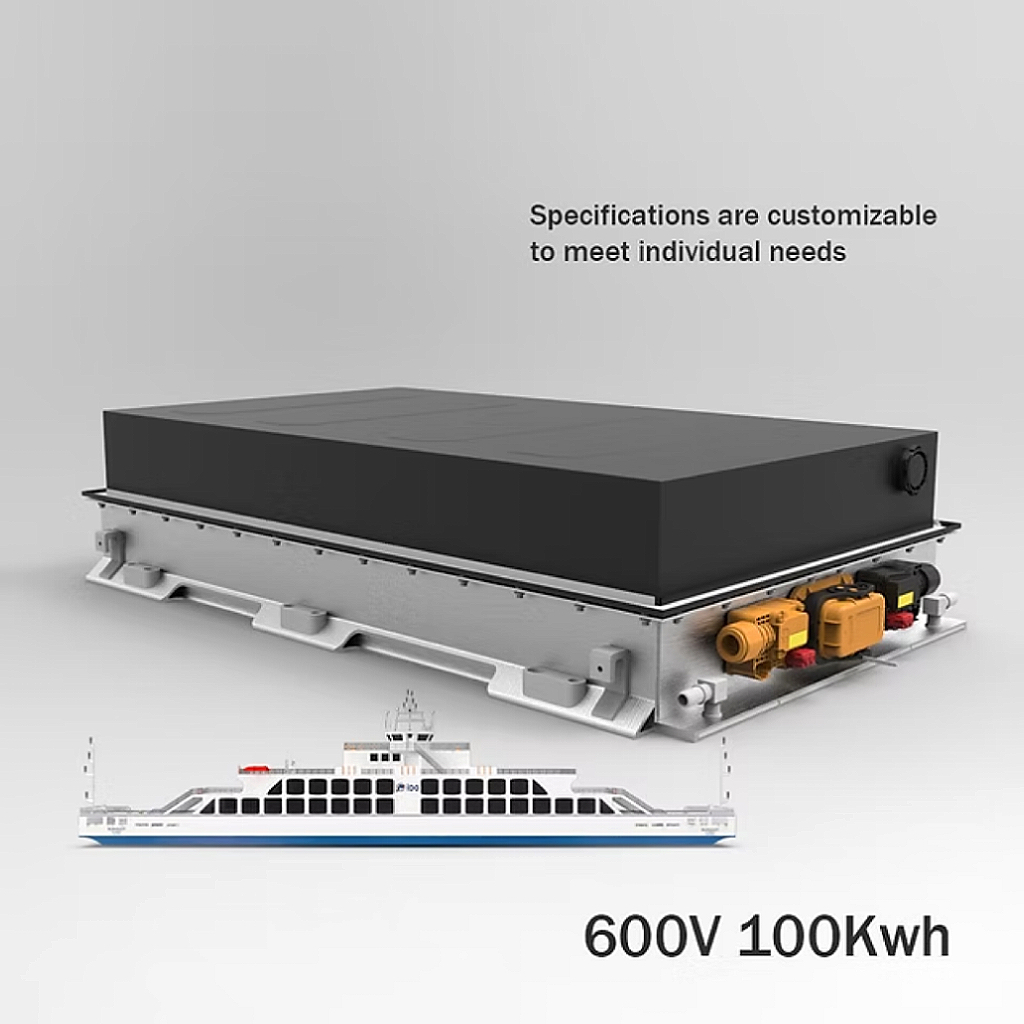

600V 100Kwh Electric Ferry Ships Battery System
Cells: NCM 21Ah Pouch cell
Case Number: 2 HV-B + 2 HV-C
Rated Voltage: 599.4V
Rated Capacity: 162Ah
Rated Energy: 100Kwh
BMS: ISO 26262 certification
Electric Ferry Ships Battery System
Description
Specifications
| Item | Specification | Remark |
| Nominal capacity | 168Ah | @25℃，±5% |
| Nominal voltage | 599.4V | |
| Charging limiting voltage | 680.3V | |
| Discharging limiting voltage | 437.5V | |
| Nominal energy | 100.7kWh | |
| Weight | 684Kg | |
| Constant charging current | 168A | cooling with air conditioner |
| Constant discharging current | 168A | |
| Peak discharging current | 200A | 10s，@50%SOC |
| Ingress protection | IP67 | |
| Working temp range | Charging: 0℃~55℃
Discharging：-20℃~55℃ |
